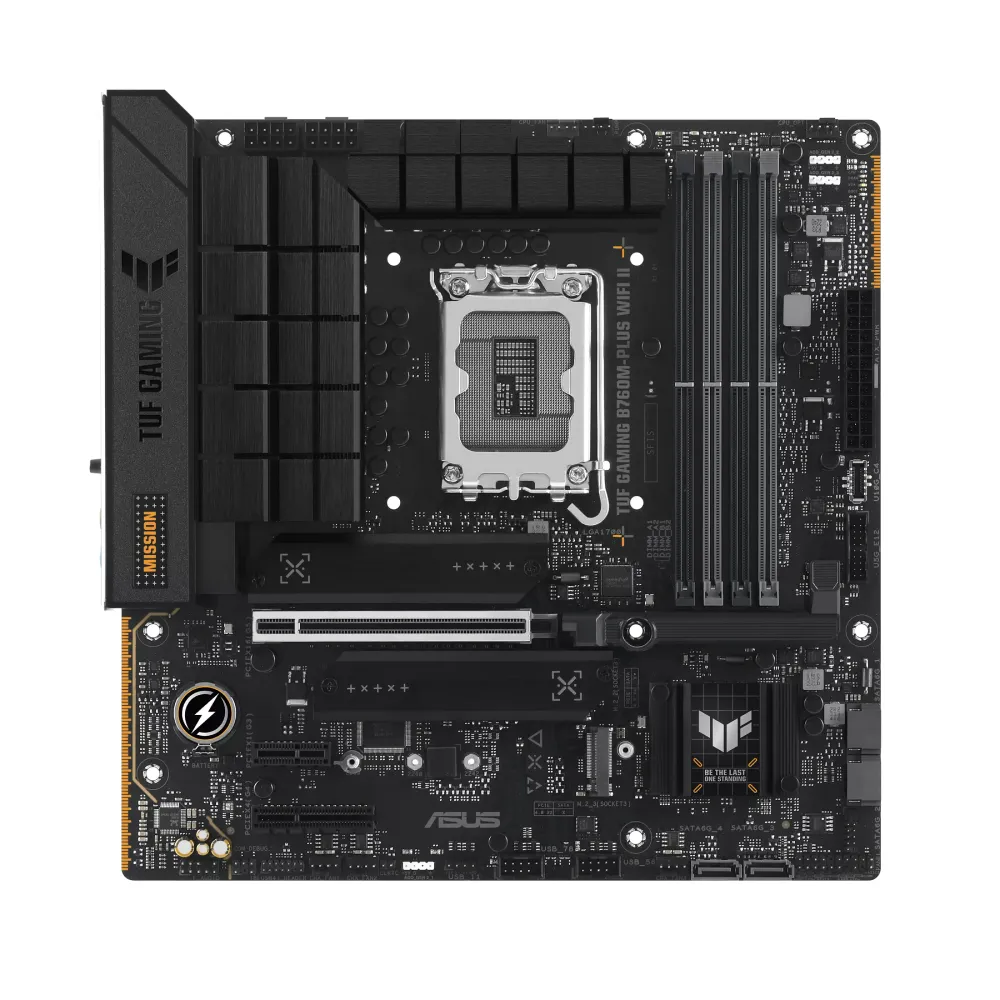

ASUS TUF GAMING B760M-PLUS WIFI II / Intel® LGA1700 (14th/13th/12th Gen) / Intel® B760 Chipset / mATX / Dual Channel DDR5 / Max 192GB @ 7800+(OC) / 1x PCIe 5.0 x16 / 3x M.2 slots (PCIe 4.0) + 4x SATA / Realtek 2.5Gb Ethernet / Wi-Fi 6E + BT 5.3 / USB 20Gbps Type-C
|
form factor
|
mATX Form Factor
|
|
chipset
|
Intel® B760 Chipset
|
|
storage
|
-
Supports 3 x M.2 slots (M.2_1/M.2_2 supports PCIe 4.0 x4, M.2_3 supports PCIe 4.0 x2)
-
4 x SATA 6Gb/s ports
-
Supports SATA RAID 0/1/5/10
|
|
expansion slots
|
-
1 x PCIe 5.0 x16 slot (CPU)
-
1 x PCIe 4.0 x4 slot (Chipset)
-
1 x PCIe 3.0 x1 slot (Chipset)
|
|
audio
|
Realtek 7.1 Surround Sound High Definition Audio CODEC | Rear optical S/PDIF out port
|
|
warranty
|
TUF Certification card included
|
|
os
|
Windows® 11, Windows® 10 64-bit
|
|
ram
|
-
4 x DIMM slots, Max. 192GB
-
DDR5 7800+(OC)/.../4800 Non-ECC, Un-buffered Memory
-
Dual Channel
-
Supports Intel® XMP, OptiMem II
|
|
model
|
TUF GAMING B760M-PLUS WIFI II
|
|
feature
|
-
ASUS TUF PROTECTION (DIGI+ VRM, LANGuard, SafeSlot Core+)
-
ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-LED)
-
AURA Sync (3 x Addressable Gen 2 headers)
-
Thunderbolt™ (USB4®) header
|
|
network
|
-
Realtek 2.5Gb Ethernet (TUF LANGuard)
-
Wi-Fi 6E (2x2 802.11ax, 2.4/5/6GHz)
-
Bluetooth® v5.3
|
|

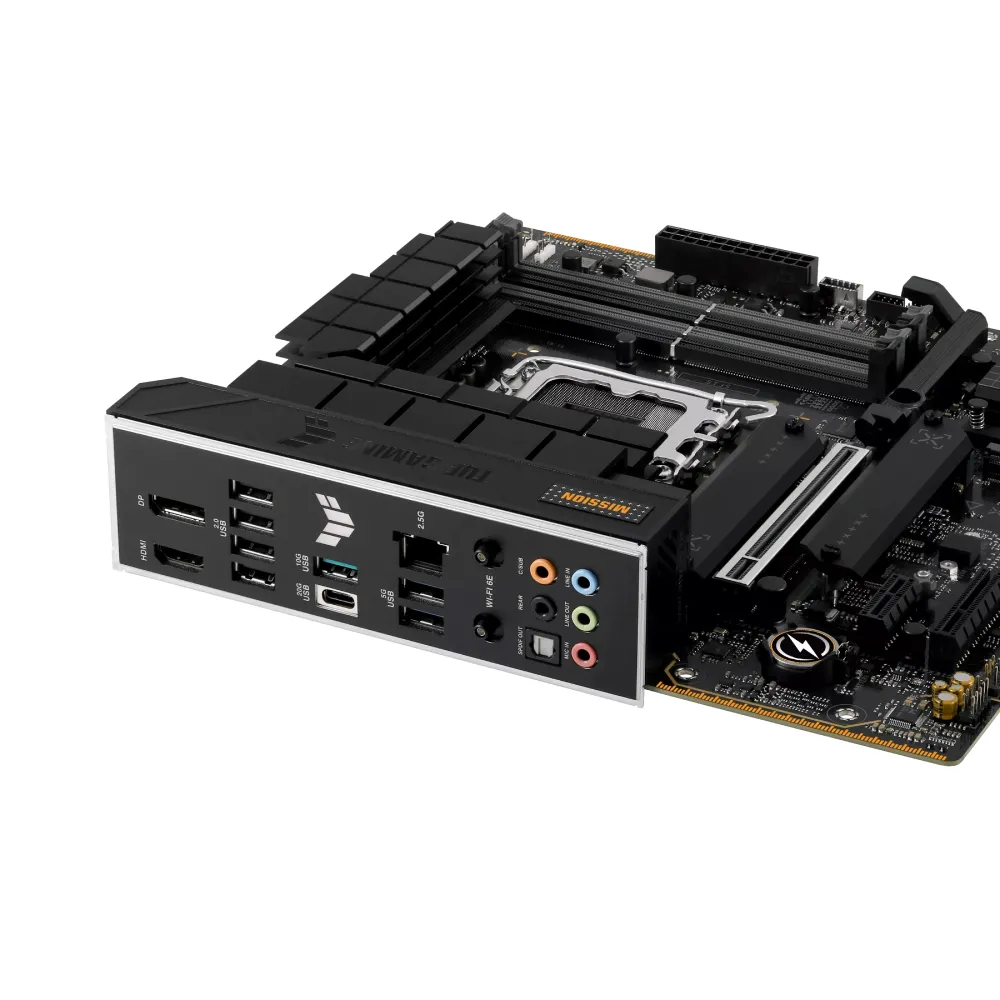

rear usb
|
-
1 x USB 20Gbps port (Type-C®)
-
1 x USB 10Gbps port (Type-A)
-
2 x USB 5Gbps ports (Type-A)
-
4 x USB 2.0 ports (Type-A)
-
Total 8 ports
|
|
cpu socket
|
-
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
|
|
graphics ports
|
1 x DisplayPort (max. 4K@60Hz) | 1 x HDMI™ port (4K@60Hz)
|
|
internal usb headers
|
-
1 x USB 10Gbps connector (supports USB Type-C®)
-
1 x USB 5Gbps header (supports 2 ports)
-
3 x USB 2.0 headers (supports 5 ports)
|
